Access and view data from HART-enabled devices, like sensors, pressure transmitters and other field instruments.
The Highway Addressable Remote Transducer Protocol (HART) protocol communicates digital data over standard 4-20mA analog current loops.
You can see measurement data in real time, configure and diagnose devices. The application allows you to send a command once or repeatedly. You can save the response or log it continuously.
You need a HART modem like ProComSol HM-USB-ISO which provides the HART data on a serial port.
Decoding

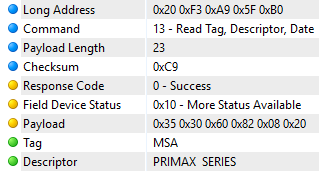

Important Universal Commands are decoded in detail. The response of all other commands is shown in decimal, hexadecimal and as float.

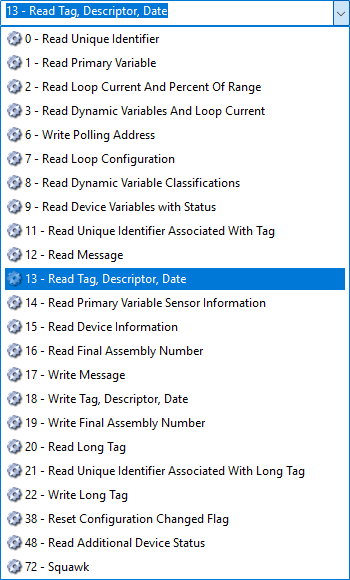

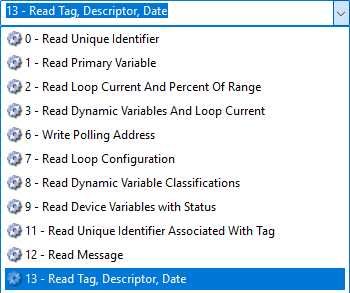

Extendable command list
Universal Commands names are already included in the command list. You can add your own command names to the list using an XML file.You can send any HART command by simply entering the command number in decimal and specifying the command payload as space-separated hexadecimal values.
Do you like the software? Make a Donation!
You don’t need to have a paypal account in order to make a donation.
You don’t need to have a paypal account in order to make a donation.
Do you have questions? Check the FAQ.
Do you need additional features or would you like to help with the translation? Send a Mail!
Install using package managers:
winget install --id the-sz.Hayman -e --forcecontent_copychoco install hayman.portable -y --ignore-checksumcontent_copy
Supported Languages:
English GermanSupported Operating Systems:
Windows 11
Windows 10
Windows 8
Windows 7
Windows Vista
Windows XP
Windows Server

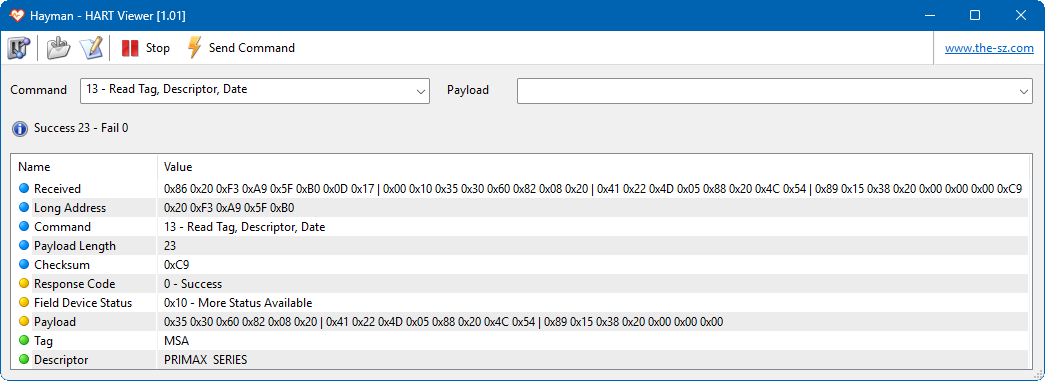

Screenshot:
